This fits only 8 1/2″ 10 bolts only with 30 spline axles, 1988 to 1998 C/K trucks, 1988 to 2000 SUV’s
Each carrier is totally disassembled, cleaned and then all the parts are inspected. Once disassembled, we check for the following:
Broken cam gear
Stripped governor teeth
Worn out case holes
Worn out clutch packs
Spun bearing journals

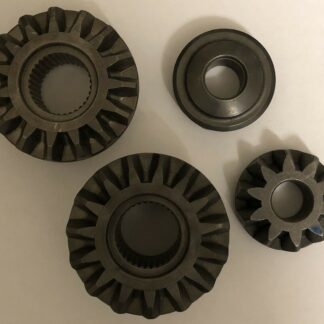

Worn or galled cross shaft and pitted side or spider gears
The carrier is carefully re-assembled, setting the internal end play back to within GM specifications. The old side bearings are removed and a new set of side bearings are installed along with new bearing races. It comes with a new GM cross shaft bolt, then its carefully packaged and sent back to you for installation.
Additional information
| Weight | 30 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
