Description

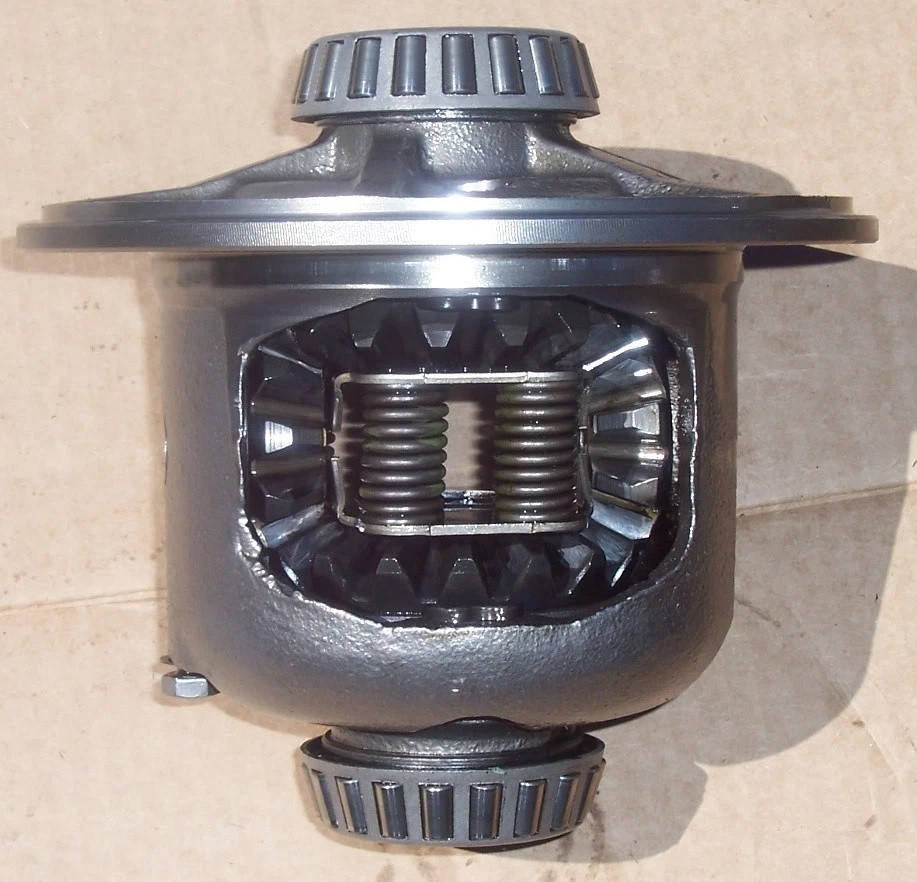

Important: This is not a “G80” – it is an Eaton style limited slip posi differential.
This one fits all 12 BOLT 3 SERIES TRUCK, GM native 2.76:1 to 3.42 ratios (2.73, 3.07, 3.42, etc), or an AFTERMARKET “thick” ring and pinion set designed to adapt a “4” series gear to a “3” series case
During our rebuild process, we totally disassemble each carrier. We remove and replace the old side bearings, clean the whole unit and inspect all the parts.
Once disassembled, we check for the following:
- Worn out case holes
- Worn out clutch packs
- Spun bearing journals
- Worn or galled cross shaft and pitted side or spider gears
Worn out parts are replaced and then the differential is carefully re-assembled, setting the internal end play back to within Eaton specifications.
A new set of side bearings are installed along with new bearing races.
